模块化车载式热水高压清洗机

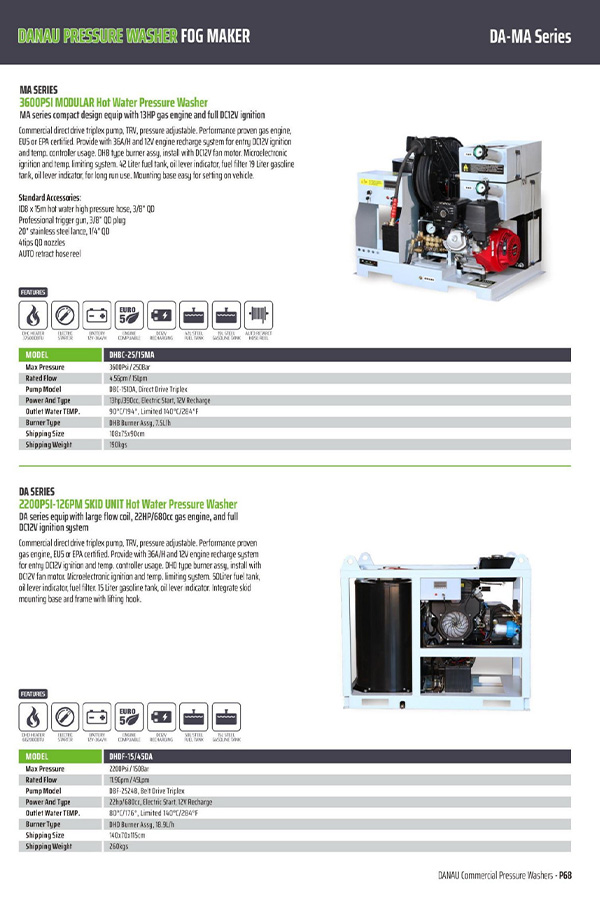

MA SERIES 360OPSI MODULAR Hot Water Pressure Washer

MA series compact design equip with 13HP gas engine and full DC12V ignition

Commercial direct drive triplex pump, TRV, pressure adjustable. Performance proven gas engine, EU5 or EPA certified. Provide with 36A/H and 12V engine recharge system for entry DC12V ignition and temp. controller usage. DHB type burner assy, install with DC12V fan motor. Microelectronic ignition and temp. limiting system. 42 Liter fuel tank, oillever indicator, fuel filter 19 Liter gasoline tank, oil lever indicator, for long run use. Mounting base easy for setting on vehicle.

Standard Accessories:

ID8 x 15m hot water high pressure hose, 3/8" QD

Professional trigger gun, 3/8" QD plug

20" stainless steel lance, 1/4" QD

4tips QD nozzles

AUTO retract hose reel

获取报价 +

上一篇：暂无
下一篇：DA SERIES 2200PSI-12GPM SKID UNIT Hot Water Pressure Washer

规格参数
应用领域
资料下载

规格参数

MODEL：DHBC-25/15MA

Max Pressure	3600Psi / 250Bar
Rated Flow	4.5Gpm / 15Lpm
Pump Model	DBC-1510A, Direct Drive Triplex
Power And Type	13hp/390cc, Electric Start, 12V Recharge
Outlet Water TEMP.	90℃/194°, Limited 140℃/284°F
Burner Type	DHB Burner Assy, 7.5L/h
Shipping Size	108x75x90cm
Shipping Weight	190kgs
