WG Series 1.1-5.5kW Smart Control Misting Foq Maker

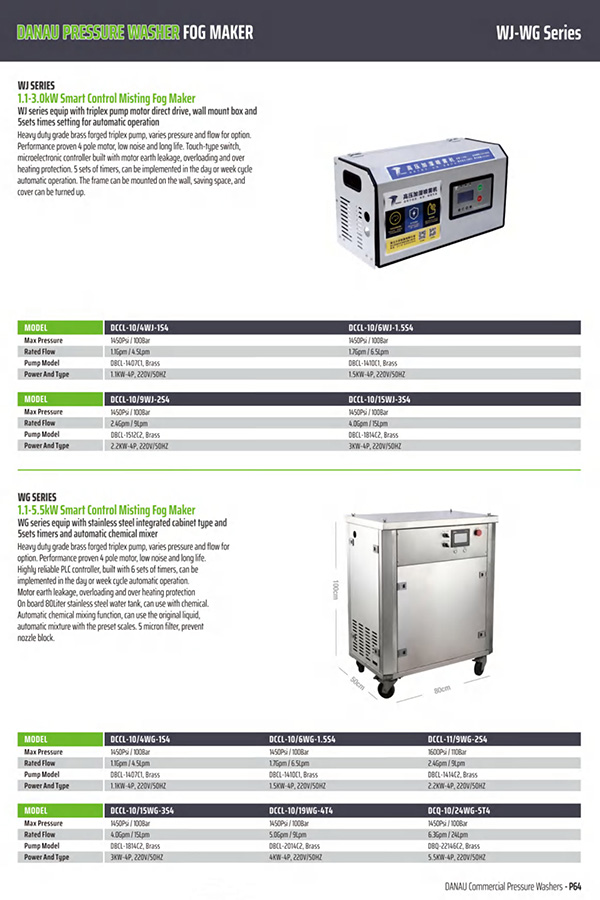

WG series equip with stainless steel integrated cabinet type and 5sets timers and automatic chemical mixer

Heavy duty grade brass forged triplex pump, varies pressure and flow for option. Performance proven 4 pole motor, low noise and long life. Highly reliable PLC controller, built with 6 sets of timers, can be implemented in the day or week cycle automatic operation. Motor earth leakage, overloading and over heating protection On board 80Liter stainless steel water tank, can use with chemical. Automatic chemical mixing function, can use the original liquid, automatic mixture with the preset scales. 5 micron filter, prevent nozzle block.

获取报价 +

技术参数

MODEL：DCCL-10/4WG-154

Max Pressure	1450Psi / 100Bar
Rated Flow	1.1Gpm / 4.5Lpm
Pump Model	DBCL-1407C1, Brass
Power And Type	1.1KW-4P, 220V/50HZ

MODEL：DCCL-11/9WG-2S4

Max Pressure	1600Psi / 110Bar
Rated Flow	2.4Gpm / 9Lpm
Pump Model	DBCL-1414C2, Brass
Power And Type	2.2KW-4P, 220V/50HZ

MODEL：DCCL-11/9WG-2S4

Max Pressure	1600Psi / 110Bar
Rated Flow	2.4Gpm / 9Lpm
Pump Model	DBCL-1414C2, Brass
Power And Type	2.2KW-4P, 220V/50HZ

MODEL：DCCL-10/15WG-3S4

Max Pressure	1450Psi / 100Bar
Rated Flow	4.0Gpm / 15Lpm
Pump Model	DBCL-1814C2, Brass
Power And Type	3KW-4P, 220V/50HZ

MODEL：DCCL-10/19WG-4T4

Max Pressure	1450Psi / 100Bar
Rated Flow	5.0Gpm / 9Lpm
Pump Model	DBCL-2014C2, Brass
Power And Type	4KW-4P, 220V/50HZ

MODEL：DCQ-10/24WG-5T4

Max Pressure	1450Psi / 100Bar
Rated Flow	6.3Gpm / 24Lpm
Pump Model	DBQ-22146C2, Brass
Power And Type	5.5KW-4P, 220V/50HZ
