模块化车载式热水高压清洗机

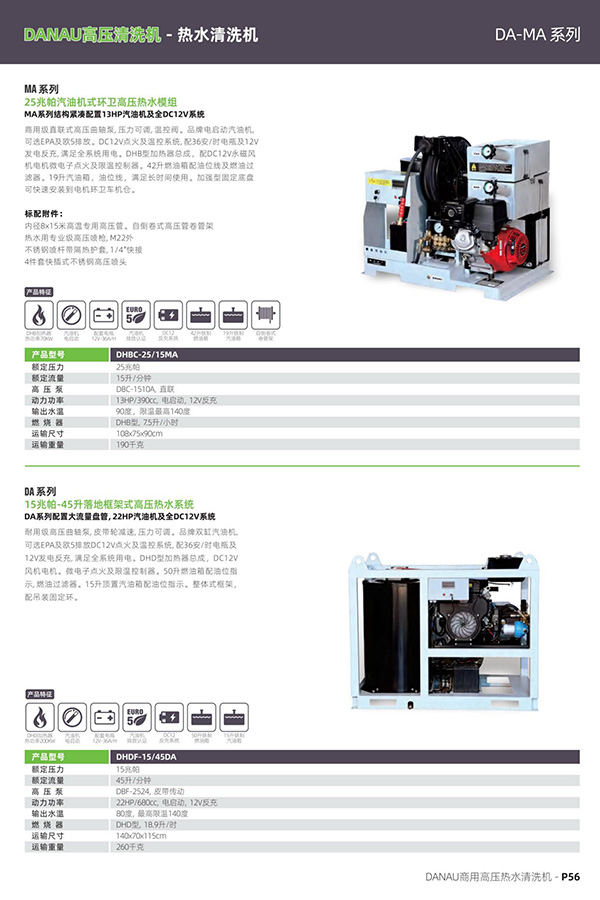

DA SERIES 2200PSI-12GPM SKID UNIT Hot Water Pressure Washer

DA series equip with large flow coil, 22HP/680cc gas engine, and fullDC12V ignition system

Commercial direct drive triplex pump, TRV, pressure adjustable. Performance proven gas engine, EU5 or EPA certified. Provide with 36A/H and 12V engine recharge system for entry DC12V ignition and temp. controller usage. DHD type burner assy, install with DC12V fan motor. Microelectronic ignition and temp. limiting system. 50Liter fuel tank, oil lever indicator, fuel filter. 15 Liter gasoline tank, oil lever indicator. Integrate skid mounting base and frame with lifting hook.

获取报价 +

上一篇：MA SERIES 360OPSI MODULAR Hot Water Pressure Washer
下一篇：SA SERIES MODuLAR Electric Motor Hot Water Pressure Washer

规格参数
应用领域
资料下载

规格参数

MODEL：DHDF-15/55DA

Max Pressure	2200Psi / 150Bar
Rated Flow	11.9Gpm / 45Lpm
Pump Model	DBF-2524B, Belt Drive Triplex
Power And Type	22hp/680cc, Electric Start, 12V Recharge
Outlet Water TEMP.	80°C/176°, Limited 140°C/284°F
Burner Type	DHD Burner Assy, 18.9L/h
Shipping Size	140x70x115cm
Shipping Weight	260kgs
