DESCRIPTION

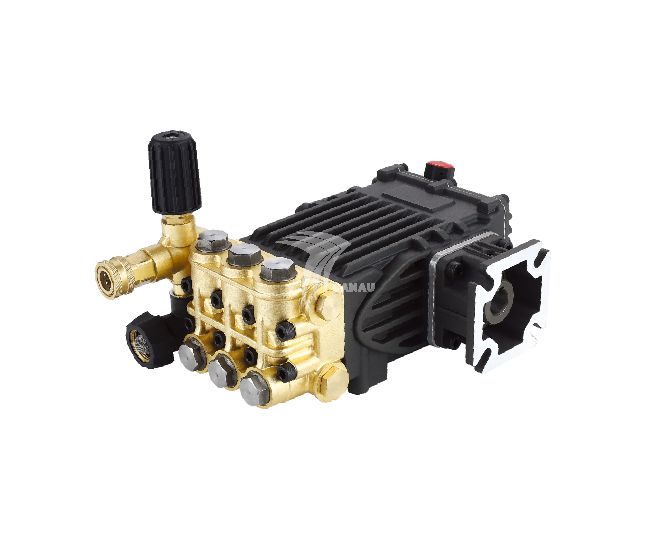

Pump Model: DBQ-18085A
Bore/Plunger Dia.: 18mm
Stroke: 8.5mm
Fluid End/Manifold Material: Brass Forged
Version/Type: A Version, Engine Direct Drive
Flange Type: A(Fit for Engine 7HP)
Shaft Dia.: Hollow Shaft3/4", 19.05mm
Max Input POWER: 7hp
Max Input RPM: 3400RPM
Port On Pump: Inlet 3/8", Outlet 1" (On pump side)
Unloader/Pressure Regulator: Include,Bolt on trap type
Inlet/Port On Unloader: Inlet 3/4" (BSP or NH), Outlet 3/8" Quick Connect
Oil Bath Capacity: 550ml (half level of oil gauge)
Oil Type:
SAE 15W/40 Non-Detergent
Water Inlet Pressure:
0-50psi/3.5bar
Max Inlet Water Temp.:
50℃/122℉
Shipping Size.:
32.5X30.5X24cm
Shipping Weight.:
10.1kgs
Application:High Pressure Water
