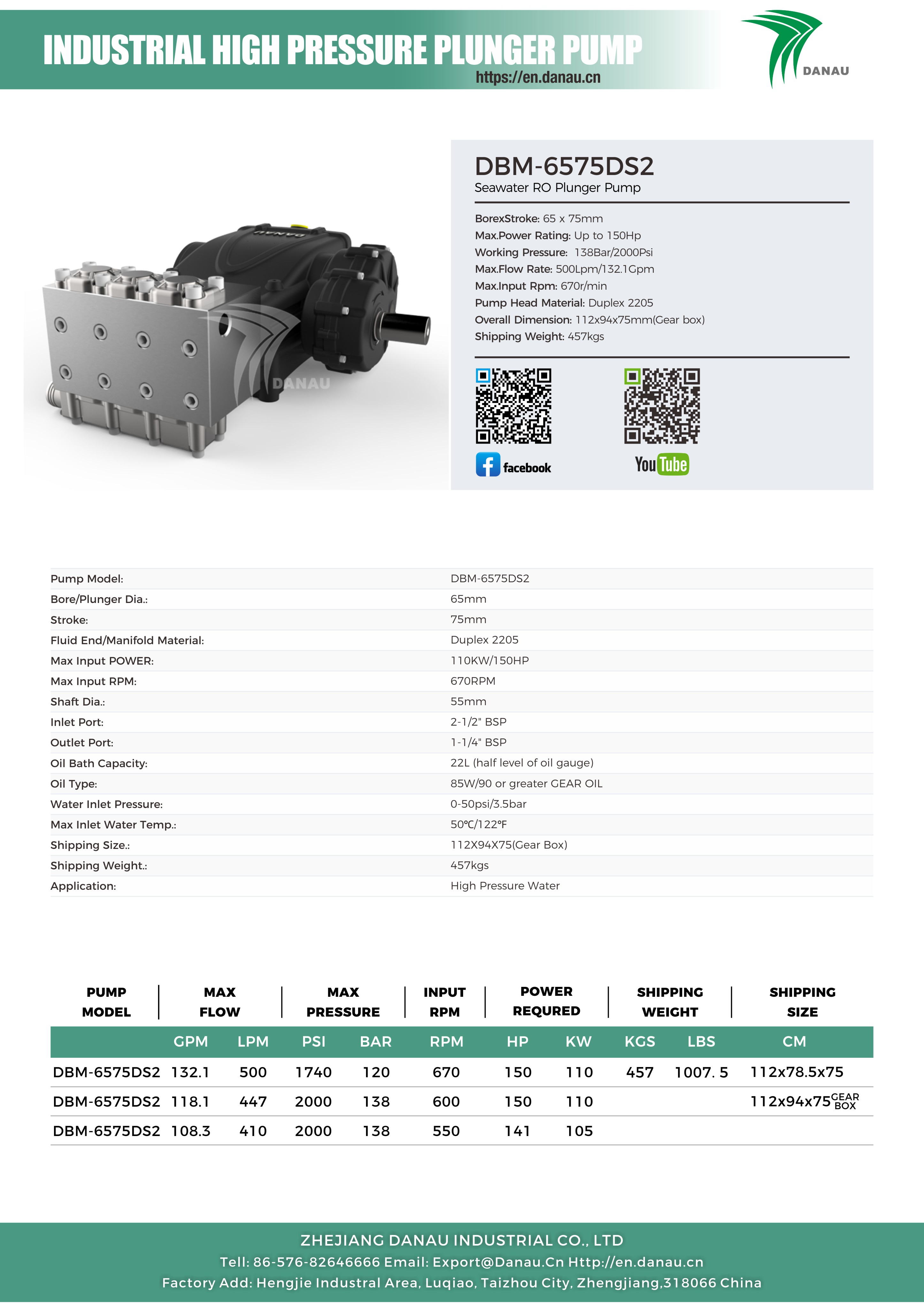

BorexStroke: 65 x 75mm
Max.Power Rating: Up to 150HP
Working Pressure: Up to 13.8Mpa
Max.Flow Rate: 500Lpm/132.1Gpm
Max.Input Rpm: 670r/min
Head Material: Duplex 2205
Overall Dimension: 112X78.5X75cm;112X94X75cm(Gear Box)
Shipping Weight: 457kgs
| Pump Model: | DBM-6575DS2 | |
| Bore/Plunger Dia.: | 65mm | |
| Stroke: | 75mm | |
| Fluid End/Manifold Material: | Duplex 2205 | |
| Max Input POWER: | 110KW/150HP | |
| Max Input RPM: | 670RPM | |
| Shaft Dia.: | 55mm | |
| Inlet Port: | 2-1/2" BSP | |
| Outlet Port: | 1-1/4" BSP | |
| Oil Bath Capacity: | 22L(half level of oil gauge) | |
| Oil Type: | 85W/90 or greater GEAR OIL | |
| Water Inlet Pressure: | 0-50psi/3.5bar | |
| Max Inlet Water Temp.: | 50℃/122℉ | |
| Shipping Size.: | 112X78.5X75cm;112X94X75(Gear Box) | |
| Shipping Weight.: | 457kgs | |
| Application: | High Pressure Water | |
